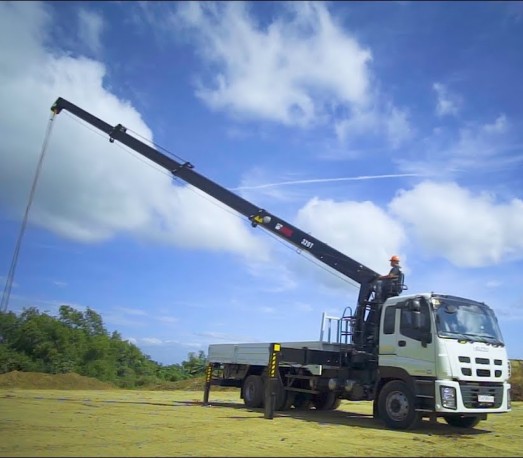

HIAB Telescopic Stiff Boom Cranes 320T-4
| Crane capacity | 34.3 tm |
| Max. working radius | 15.9 m |
| Max. working height | 17.1 m based on installtaion level |
| Recommended oil flow | 80 liter / min |
| Max. working pressure | 200 bar |
| Boom Type | Hexagonal, 4 sections |
| Boom Lifting angle / speed | 0 - 80 degres / 18 sec. |
| Boom Extension speed | 10.8 m / 38 sec. |
| Hoist Type | Planetary gear reduction with hydraulic brake |
| Hoist Lifting capacity | 10000 kg at 4 falls |
| Hoist Hook speed | Min, 8 m / min. - Max. 10 m / min. (4 falls) |
| Slewing Type | Planetary gear reduction with hydraulic brake |
| Slewing Angle | 360 degress, continuous rotation |
| Slewing Speed | 2.0 rpm |
| Outrigger span | 6.4 m |
| Weight including outrigger | 5100 kg, Approx. |
