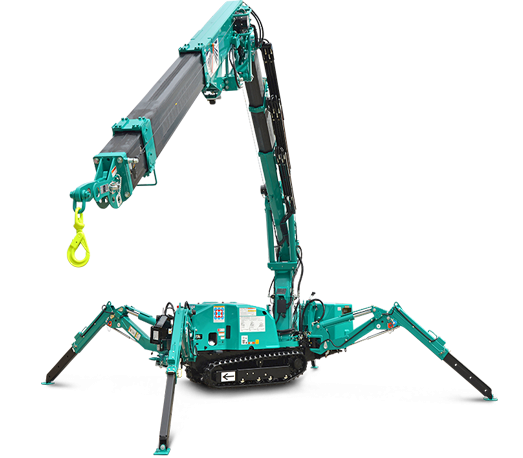

MAEDA Spider Cranes MK1033CW-1
| Crane Capacity | 0.995t x 1.3m |
| Max. Working Radius | 9.9m x 0.18t |
| Max. Lifting Height | 11.3m |
| Max. Reach Below Ground (Optional Winch) | -66.5m (single fall) |
| Outringger Max. Extended Width | (Lateral) 4,580mm x (Front) 4,530mm x (Rear) 3,810 |
| Travel Speed | 0-2.0km/h |
| Travel Ground Preassure (MK1033CW-1) | 57.6kpa [0.59kgf/cm2] |
| Travel Ground Preassure with fly jib | 59.6kpa [0.61kgf/cm2] |
| Engine | YANMAR 2TNV70-NMBA / Diesel |
| Engine Rated Output | 7.4kw/2,500rpm |
| Electric Motor | 5.5kw, 4P 380V |
