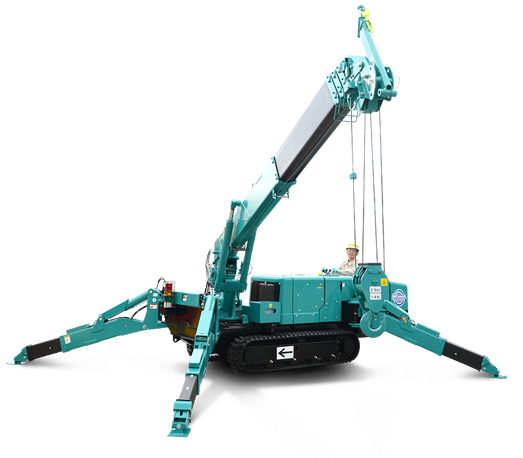

MAEDA Spider Cranes MC305C-3
Crane Capacity | 2.98t x 2.5m |
Max. Working Radius | 12.16m x 0.26t |
Max. Lifting Height | 12.52m |
Max. Reach Below Ground | -16.09m (4 falls) |
Outringger Max. Extended Width | (Lateral) 4,888mm x (Front) 4,504mm x (Rear) 4,396mm |
Travel Speed | 0-2.8km/h |
Travel Ground Preassure (MC305CRM-2) | 36.3kpa [0.37kgf/cm2] |
Travel Ground Preassure (MC305CRME-2) | 37.3kpa [0.38kgf/cm2] |
Engine | YANMAR 3TNV76 / Diesel |
Engine Rated Output | 15.2kw/2,500rpm |
Electric Motor | 5.5kw, 4P 380V |
Dimensions | 4,258mm (L) x 1,280mm (W) x 1,695mm (H) |
Machine Weight | 3,900kg (4,080kg with electric motor) |
